ABS-M30

ABS-M30 is up to 25-30 percent stronger than standard Stratasys ABS and is an ideal material for conceptual modeling, functional prototyping, manufacturing tools, and end-use parts. ABS-M30 has greater tensile, impact, and flexural strength than standard ABS.

Layer bonding is significantly stronger than that of standard ABS, for a more durable part. This results in more realistic functional tests and higher quality parts for end use.

Color options: Natural, white, black, gray, red, and blue

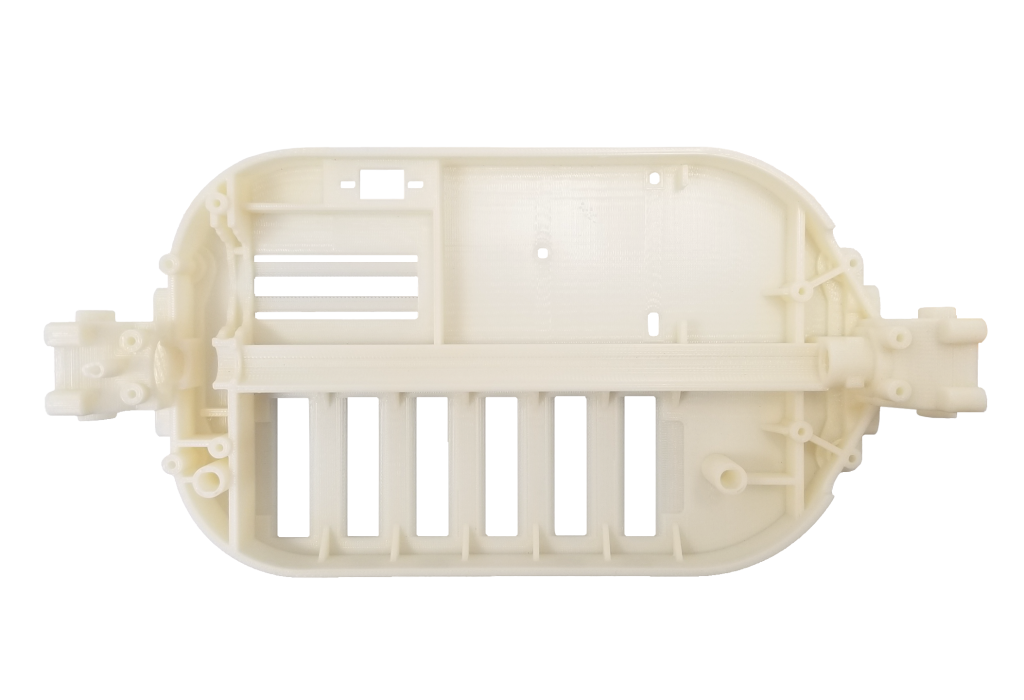

abs-m30

Download PDF

Mechanical Properties Test Method English Metric
Tensile Strength (Type 1, 0.125”, 0.2”/min) ASTM D638 5,200 psi 36 MPa
Tensile Modulus (Type 1, 0.125”, 0.2”/min) ASTM D638 350,000psi 2,400 MPa
Tensile Elongation (Type 1, 0.125”, 0.2”/min) ASTM D638 4% 4%
Flexural Strength (Method 1, 0.05”/min) ASTM D790 8,800 psi 61 MPa
Flexural Modulus (Method 1, 0.05”/min) ASTM D790 336,000 psi 2,300 MPa
IZOD Impact notched (Method A, 23°C) ASTM D256 2.6 ft-lb/in 139 J/m
IZOD Impact, un-notched (Method A, 23°C) ASTM D256 5.3 ft-lb/in 283 J/m
Thermal Properties Test Method English Metric
Heat Deflection (HDT) @ 66 psi, 0.125” unannealed ASTM D648 204° F 96° C
Heat Deflection (HDT) @264 psi, 0.125” unannealed ASTM D648 180° F 82° C
Vicat Softening Temperature (Rate B/50) ASTM D1525 210° F 99° C
Glass Transition (Tg) DSC (SSYS) 226° F 108° C
Coefficient of Thermal Expansion (flow) ASTM E831 4.9E-05 in/in/°F 8.82 E-05 mm/mm/°C
Coefficient of Thermal Expansion (xflow) ASTM 831 4.7E-05 in/in/°F 8.46E05 mm/mm/°C
Melt Point – – – – – – – Not Applicable Not Applicable
Electrical Properties Test Method Value Range
Volume Resistivity ASTM D257 4.0x10e14 – 5.0x10e13 ohms
Dielectric Constant ASTM D150-98 2.9 -2.7
Dissipation Factor ASTM D150-98 .0052 – .0049
Dielectric Strength ASTM D149-09, Method A 370 -71 V/mil
Other Test Method Value
Specific Gravity ASTM D792 1.04
Flame Classification UL94 HB (0.09”, 2.50 mm)
Rockwell Hardness ASTM D785 109.5
UL File Number – – – – – – – – – E345258
