ASA
Material Data Sheet
ASA
Build consistently high-quality parts with exceptional UV stability and the best aesthetics of any FDM thermoplastic. ASA is poised to become the most popular all-purpose prototyping material, matching or exceeding the mechanical properties of ABS.

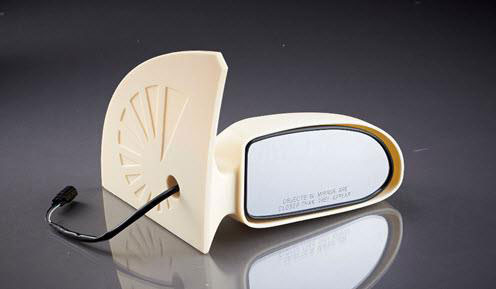

Its UV-resistance makes it especially suited in end-use parts for outdoor commercial and infrastructure use. Its matte finish makes it ideal for attractive prototypes in consumer sporting goods, tools and automotive components and accessories.
Color options:
Ivory, white, light gray, dark gray, black, red, dark blue, green, yellow, and orange
Quick Facts:
- UV stability
- Matches mechanical properties of ABS
- Good for outdoor use
| English | Metric | ||||
|---|---|---|---|---|---|
| Mechanical Properties | Test Method | XZ Axis | ZX Axis | XZ Axis | ZX Axis |
| Tensile Strength, Yield (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 4,200 psi | 3,850 psi | 29 MPa | 27 MPa |
| Tensile Modulus, Ultimate (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 4,750 psi | 4,300 psi | 33 MPa | 30 MPa |
| Tensile Modulus (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 290,000 psi | 280,000 psi | 2,010 MPa | 1,950 MPa |
| Tensile Elongation at Break (Type 1, 0.125”, 0.2”/min) | ASTM D638 | 9% | 3% | 9% | 3% |
| Tensile Elongation at Yield (Type 1, 0.05”/min) | ASTM D638 | 2% | 2% | 2% | 2% |
| Flexural Strength (Method 1, 0.05”/min) | ASTM D790 | 8,700 psi | 6,900 psi | 60 MPa | 48MPa |
| Flexural Modulus (Method 1, 0.05”/min) | ASTM D790 | 270,000 psi | 240,000 psi | 1870 MPa | 1,630 MPa |
| Flexural Strain at Break (Method 1, 0.05”/min) | ASTM D790 | No Break | 4% | No Break | 4% |
| Mechanical Properties | Test Method | English | Metric |
|---|---|---|---|
| Notched Impact, XZ orientation (Method A, 23°C) | ASTM D256 | 1.2 ft-lb/in | 64 J/m |
| Unnotched Impact XZ orientation (Method A, 23°C) | ASTM D256 | 6 ft-lb/in | 321 J/m |
| Thermal Properties | Test Method | English | Metric |
|---|---|---|---|
| Heat Deflection (HDT) @ 66 psi | ASTM D648 | 208° F | 98° |
| Heat Deflection (HDT) @ 264 psi | ASTM D648 | 196° F | 91° |
| Vicat Softening Temperature (Rate B/50) | ASTM D1525 | 217° F | 103° C |
| Glass Transition (Tg) | DSC (SSYS) | 4.9E-05in/in/° F | 8.82-05mm/mm/°C |
| Coefficient of Thermal Expansion (flow) | ASTM E831 | 4.9E-05in/in/°F | 8.82-05mm/mm/°C |
| Coefficient of Thermal Expansion (xflow) | ASTM 831 | 4.7E-05in/in/°F | 8.46-05mm/mm/°C |
| Electrical Properties | Test Method | Orientation | Value Range |
|---|---|---|---|
| Volume Resistivity | ASTM D257 | XZ Axis | 1.0E14 – 1.0E15 ohm-cm |
| Dielectric Constant | ASTM D150-98 | XZ Axis | 2.97 – 3.04 |
| Dissipation Factor | ASTM D150-98 | XZ Axis | 0.009 |
| Dielectric Strength | ASTM D149-09, Method A | XZ Axis | 329 V/mil |
| Dielectric Strength | ASTM D149-09, Method A | ZX Axis | 414 V/mil |
| Other | Test Method | Value |
|---|---|---|
| Specific Gravity | ASTM D792 | 1.05 |
| Flame Classification | UL94 | HB |
| Rockwell Hardness | ASTM D785 | 82 |
| UL File Number | ————– | 345258 |
Download pfd for technical specifications.
